製品案内

　LED HIGH BAY LIGHT

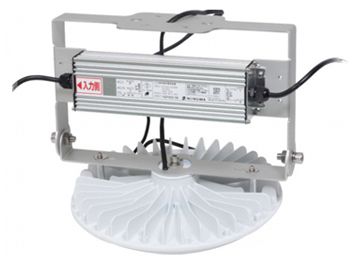

 LED HIGH BAY CTU TYPE



Specification
Model CTU-400-50DT CTU-700-50DT
Power Comsumption 87W 135W
Luminous Trasparent 13841 lm/ 159.1 lm/W 22075 lm/ 163.51 lm/W
Glare 12580 lm/ 144.6 lm/W 19278 lm/ 142.8 lm/W

Colour Rendering

Index(CRI)

 Ra70
Beam Angle 115°/80°
Oparating Temperature -30°C ~ +60°C
Colour Temperature 5000K/4000K/3000K/2400K

Life Spam

(70% Lumen maintenance)

 60000h
IP Rating IP65/IP67
Warranty 5 Years

* Operating temperature are the rang installation environment that does not interfere with the heat radiation

*Specification updated in Jul 2016. Product specification may change without prior notice

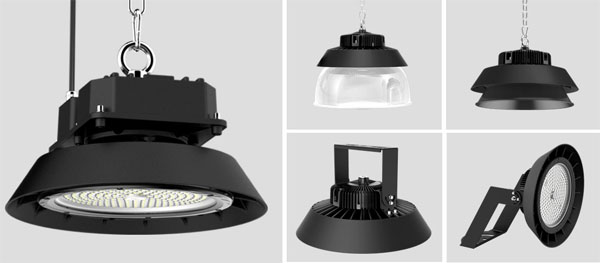

 LED HIGH BAY INDUSTRIAL TYPE


Specification
Model 100W 120W 150W 200W
Lumen Output (lm) 12500-16000 15000-19200 18750-24000 25000-30000
Weight 6.1±0.3 kg 6.4±0.3 kg 7.2±0.3 kg
LED Chip Brand PHILIPS LUMILEDs, OSRAM, NICHIA (mand in Japan)
CCT | CRI 5000K (Optional 6500k, 4000k, 3000k ) Ra70, Ra80
Beam Angle 50°/90°/120°
Power Parameter

Input Voltage 100-240 VAC/ 100-277 VAC, 50-60 Hz |

Power Factor ≥0.95 | THDi < 15%
Protection

Surge Protection L,N 2kV, L,N-GND 4kV | Short Circuit |

Over Temperature Protection | Over Voltage & Current Protection
LED Lifespan >50,000 hours (L70@32°C)
IP | IK Rating IP 65 | IK08
Certification TIS 1955/2551, CE, ROHS, ISO 9001, ISO14001, LM80, TM-21, LM79
Environment Operating Temperature -30 to 50 °C | Humidity 15%-90%RH
