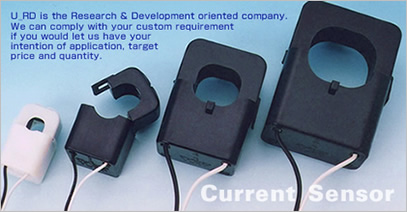

Current Sensor |
U_RD is the Research & Development oriented company.
We can comply with your custom requirement
if you would let us have your
intention of application, target
price and quantity. |
Price：Call |
|
| |
 |
| AC Current Sensor |
General Purpose CTL Series
Precision Purpose CTL-Z Series
Clamp-on Type
LED Indicator
High Frequency CT |
|
|
| DC Current Sensor |
Open Loop PCB Mount
Open Loop Through hole Type
Closed Loop Throughhole Type
Mcro Current Thtough hole Type
Mcro Current Cube Type
Open Loop Clamp on Type |
|
|
|
| AC Current Relay |
Adjustable Current Detector
Fixed Current Detector |
|
|
| I/V Convertor |
AC mean Current Convertor
AC RMS Current Convertor
AC/DC RMS Current Convertor |
|
|
 |
3CT Method Leakage Current Meter : MCL-4000F |
| New Method Can Measure Leakage Current by clamping 3 or 4 CTs respectively to |
the conductors. Most suitable to measure the leakage current in the fields where one |
CT cannot be clamped to the wires en bloc and also, this model can measure each line |
current up to AC 800A |
| SPECIFICATIONS : |
|
| Measuring Range |
: AC 0~2000mA/ 0~800A |
| Accuracy |
: +/- 1%rdg, +/- 5dgt |
Measuring Method
Sampling Rate
Filter Function
DC mV Output |
: Dual integration mode
: 2 time/sec.
: Hi-Frequency Cut (LPF = 130Hz)
: 100mV F.S. |
| Power Supply |
: UM-4 (1.5V)x2 |
| |
Size & Weight
|
: 130x200x38mm., 500g
|
|
|
