Explosion Proof LED Lighting |
 |
|

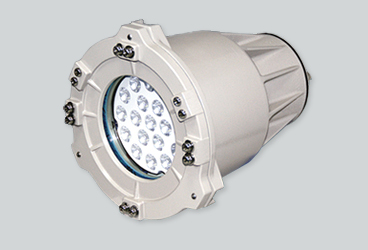

SEIWA Model： LZTA |
|
|
|
|
|
|
|
|
 |
 |
|
 |
- TIS 1955-2551.
- Power consumption 22W, equivalent to mercury 100W.
- High transparency is achieved with a unique optical design. Allows easier viewing of in-tank conditions than conventional incandescent lamp.
- Without ultraviolet and infrared rays, free from the chemical reaction of in-tank solvents and other harmful effects on stored materials.
|
|
| |
.......................... ............................................................................................ |

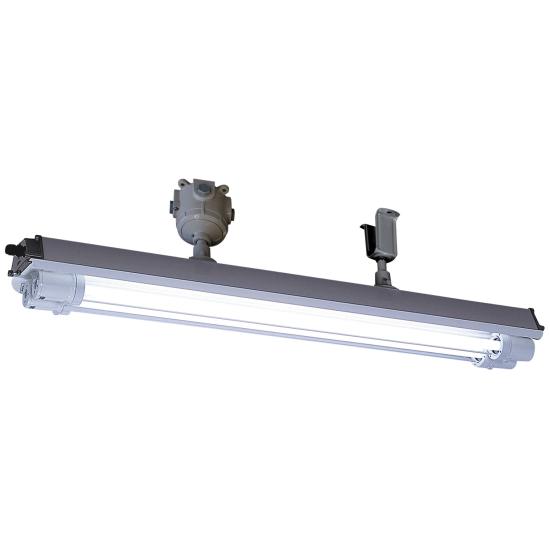

SEIWA Model： LZAB |
|
|
|
|
|
|
|
|
 |
|
|
- TIS 1955-2551.
- Power consumption 26W x 1, 26W x 2, equivalent to fluorescent 45W x 1, 45W x 2.
- The fittings can be installed in the locations of existing lighting fixtures.
- High CRI, Ra 83.
- Both single-lamp and double-lamp fluorescent light equivalence are avalible to meet requet brightness.
|
|
|
.......................... ............................................................................................ |
|
| |
 |
 |
KOWA Model: EXPLOSION PROOF |
| |
 |
- > Hazardous Locations
- Class l, Division 2, Groups A, B, C, D
- Class ll, Divition 2, Groups F, G
- > UL Standards
- UL844 / UL1598 / UL1598A / UL50E
- > Environmental Ratings
- NEMA 4X / IP66 Wet Location
|
|
| |
|
|
|
|
 |
|
|
|
|
| |
 |
|
| |
|
|
|
|
|
|

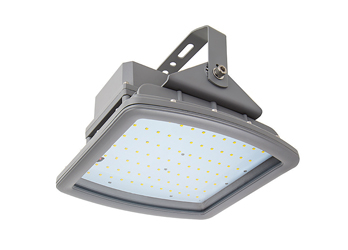

LED EXPLOSION PROOF LIGHT |
|
|
| |
|
|
|
 |
-
-
-
The Explosion proof LED
-
Luminaire
are designed for installations where moisture,
dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected. They can be used in
Locations made hazardous by the presence of
flammable vapors or gases or combustible dusts
as defined by the NES and IEC
|
|
|
|
